Grand
Technical information

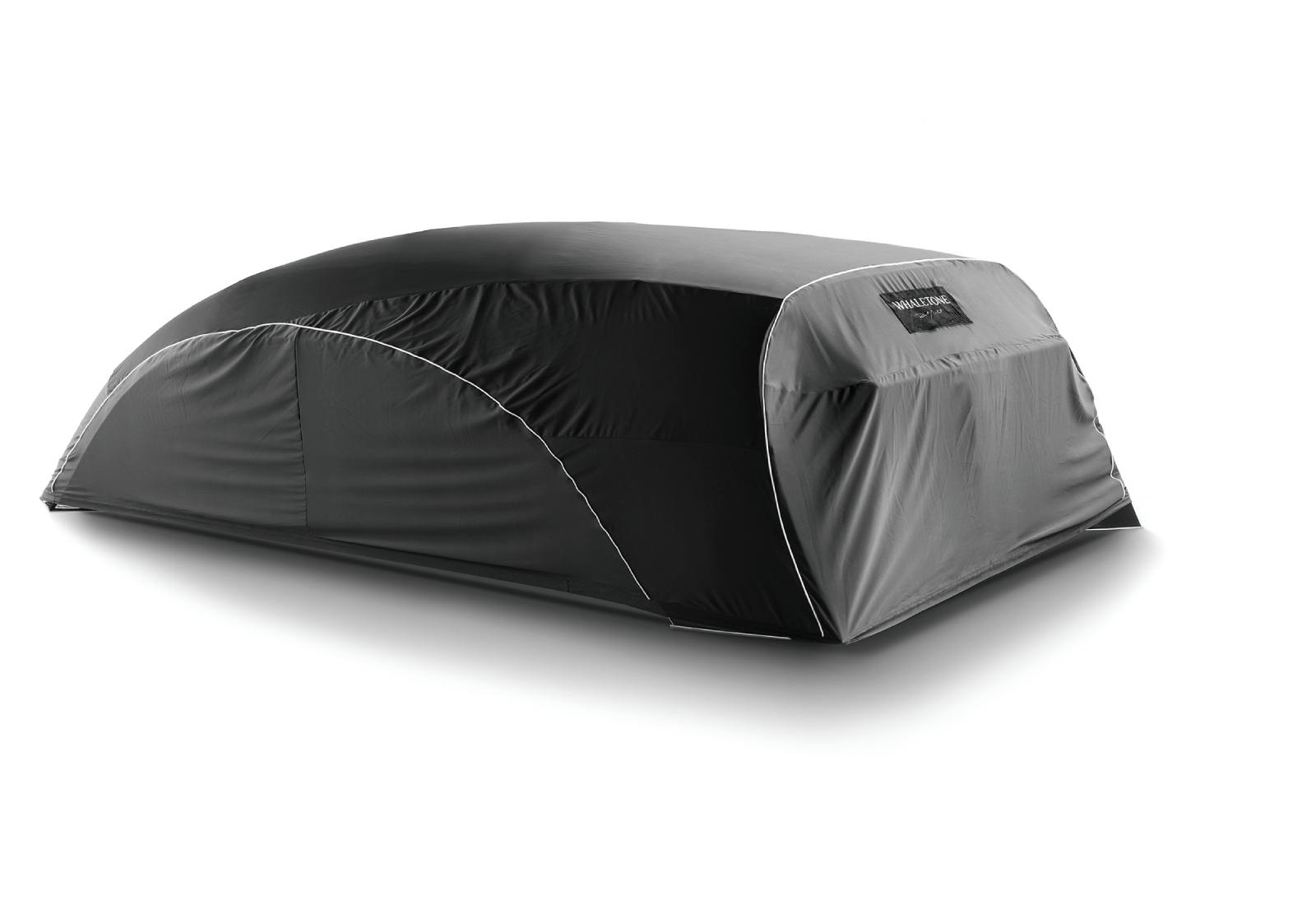

| GRAND HYBRID | GRAND PIANO IN THE BOX COVER FOR THE SHIPPING | |
|---|---|---|

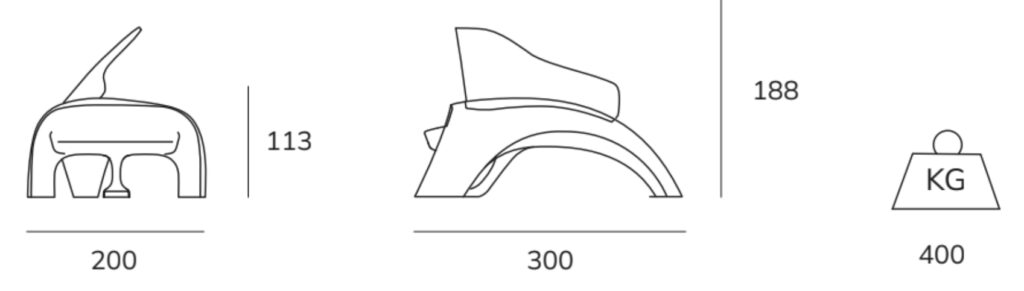

| SIZE |  |  |
| POWER | |
|---|---|
| MAX POWER CONSUMPTION | 2000 WATTS |
| STANDBY POWER CONSUMPTION | 2 WATTS |
| MAINS OPERATING VOLTAGE | 230VAC/50-60HZ |
| SOUND GENERATOR (GENERAL MIDI 2) | |
|---|---|
| 2X INDEPENDENT SOUND ENGINES | SOUND ENGINE 1: V-PIANO TECHNOLOGY SOUND ENGINE 2: SUPER NATURAL |
| ELECTRIC PIANO | SUPER NATURAL PIANO | E-PIANO | CLAV |
| VIRTUAL TONE WHEEL ORGAN | PCM SOUND GENERATOR |
|
PCM SOUND GENERATOR GM2 (FOR SMF PLAYBACK) | 256 |
| TONES | 1100 |
| LIVE SET | PRESET: 300 USER: 100 |
| PARTS | 16 PARTS (MAX 8 PARTS ARE USED IN THE PROGRAM) |
| MAXIMUM POLYPHONY | V-PIANO TECHNOLOGY SOUND ENGINE: FULL POLYPHONY SUPERNATURAL SOUND ENGINE: 128 VOICES |
| ONE TOUCH BUTTON | 3X PIANO + 3 PROGRAMMABLE |
| EFFECTS | MODULATION FX: 4 SYSTEMS, 62 TYPES TREMOLO/AMP SIMULATOR: 4 SYSTEMS, 6 TYPES REVERB: 6 TYPES DELAY: 5 TYPES SYMPATHETIC RESONANCE (ONLY FOR SUPER NATURAL PIANO) 3-BAND COMPRESSOR 5-BAND DIGITAL EQUALIZER |
| DETAILS | ||
|---|---|---|
| RECORDING FILE FORMAT | STANDARD MIDI: FILE FORMAT-0/1 AUDIO FILE: WAV (44.1 KHZ, 16-BIT LINEAR), MP3 | |
| MECHANISM | 88 KEYS FROM KLUGE, WITH ESCAPEMENT, FULL MECHANICAL CLASSICAL MECHANISM | |
| PLAYABLE SONG FORMAT | WAV (44.1 KHZ, 16-BIT LINEAR) | |

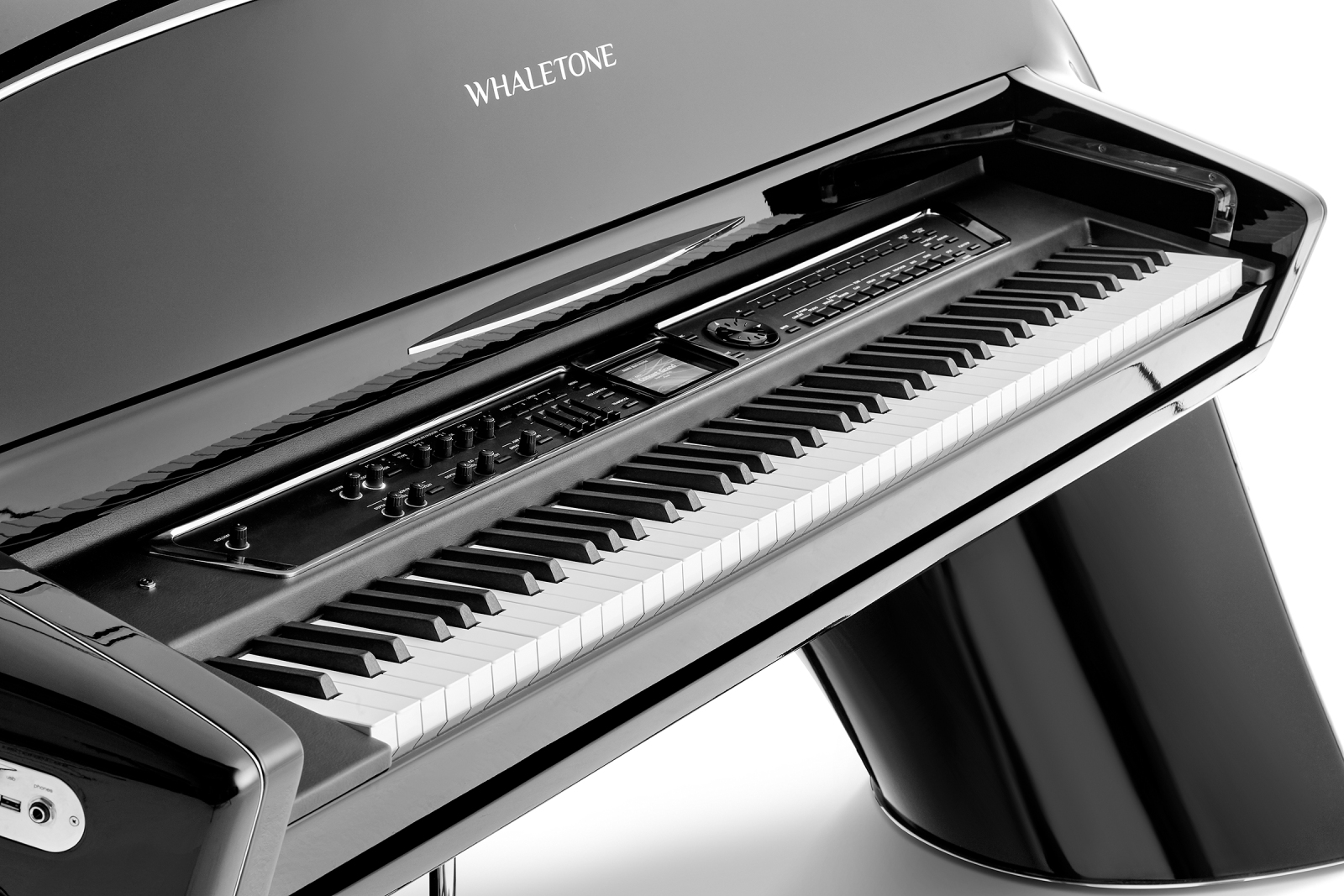

| CONTROLLERS | SLIDER X 9 (WITH ILLUMINATION) KNOBS X 8 (WITH ILLUMINATION) PITCH BRND / MODULATION LEVEL MODULATION WHEEL X2 | |
| PEDALS | X 3 (UNA CORDA, SOSTENUTO, SUSTAIN) + 1 EXTERNAL PROGRAMMABLE | |

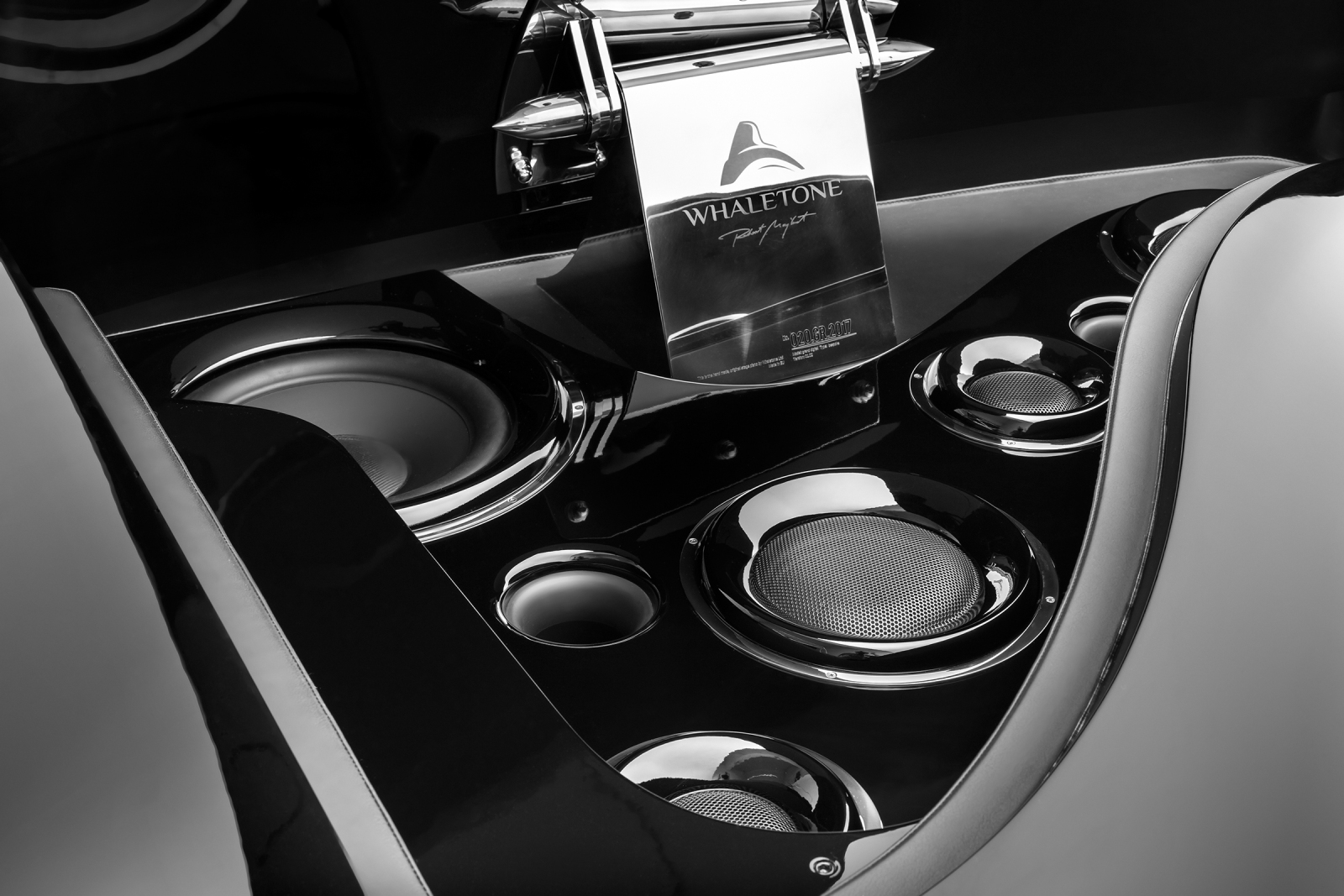

| LOUDSPEAKERS | 1X SUBWOOFER + PASSIV, 2X MIDRANGE, 2X TWEETER | |
| AMPLIFIER | RATED POWER OUTPUT | 200 - WATTS PER CHANNEL |
| AMPLIFIER | HIGH END HYPEX®CLASS D | |
| FREQUENCY RESPONSE | 10 - 24 KHZ + 0/-3DB | |
| CONNECTORS | MAIN OUT (L/R) JACKS: XLR TYPE SUB OUT (L/R) JACKS: 1/4 INCH PHONE TYPE INPUT JACK: STEREO MINIATURE PHONE TYPE MIDI (THRU/OUT/2) CONNECTOR USB (COMPUTER) PORT: USB TYPE B USB (MEMORY) PORT: USB TYPE A PHONES JACK: STEREO 1/4 INCH PHONE TYPE | |
| PIANO STOOL |  |
